Facecam NeoUser manual
Facecam Neo helps you look and feel your professional best. It captures everyday meetings and livestreams in true 1080p60 HD, a dream compared to your laptop’s built-in camera. And it sets up in a snap.
It works with any app, but you can unlock more with ours.
AT A GLANCE
- Ready out of the box, no software setup needed
- Capture more detail in ultra-sharp 1080p Full HD video
- Move naturally with less motion blur in 60 fps
- 77° field of view puts your face in focus, not your background

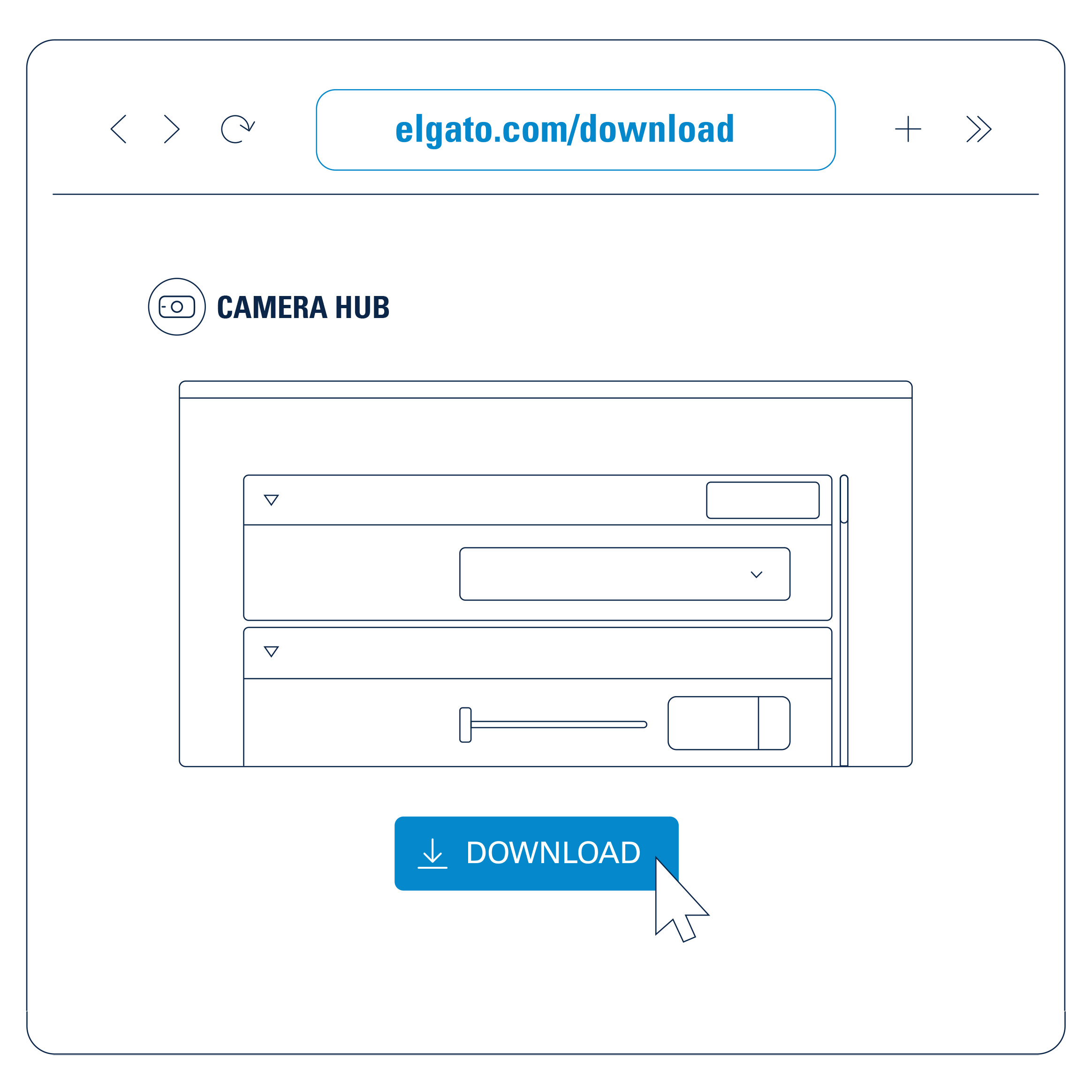

- Includes the optional Camera Hub app to customize your image
- Pair with Stream Deck Neo to control with a key press
- Made and packaged sustainably to reduce plastic waste
PRODUCT HIGHLIGHTS
- Privacy shutter for peace of mind
- Autofocus lens and CMOS sensor
- Activity LED tells you when you're live
- Low profile monitor mount
- Fixed USB Type C cable
Getting started
PLUG AND PLAY

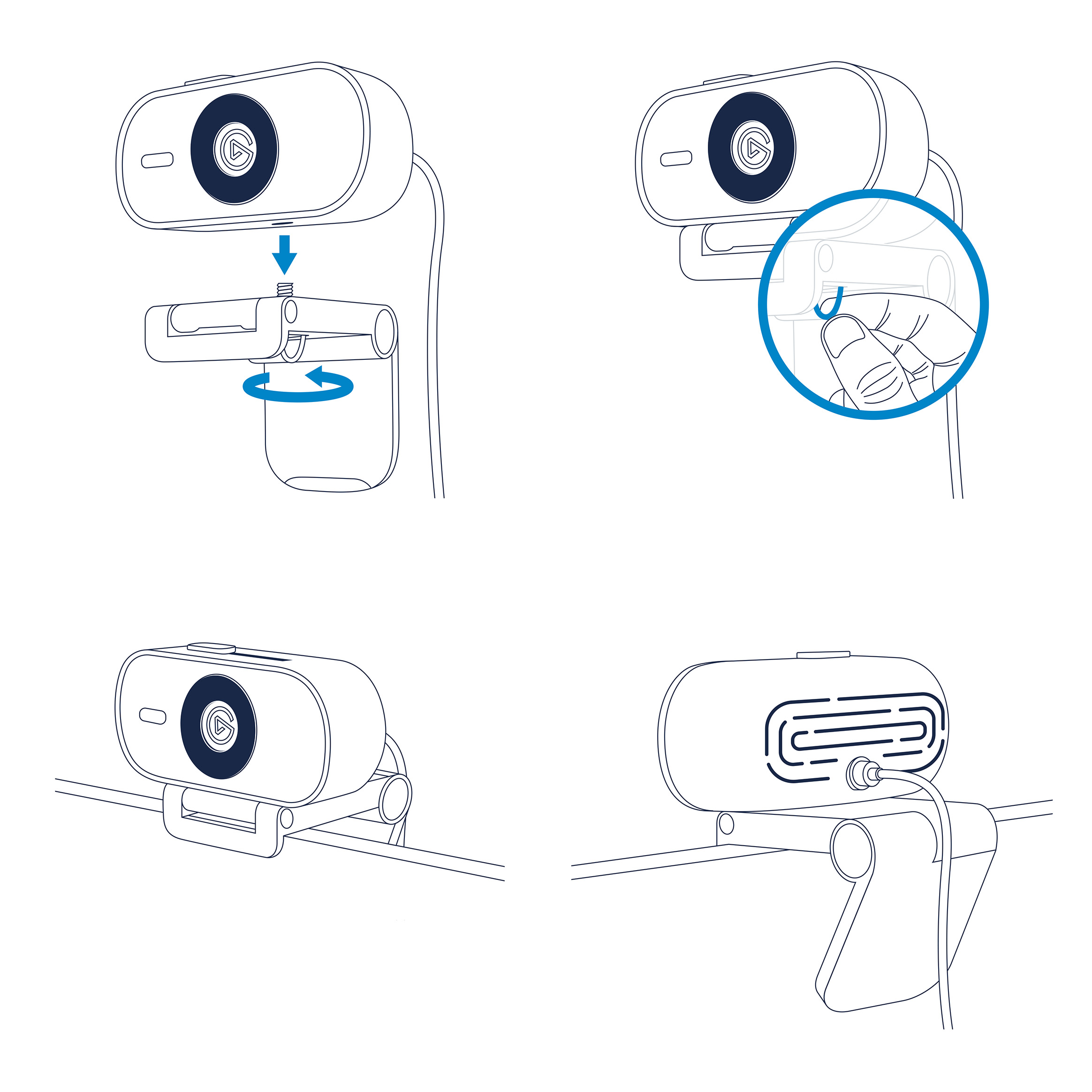

1. MOUNT
Mount Facecam Neo on your monitor.

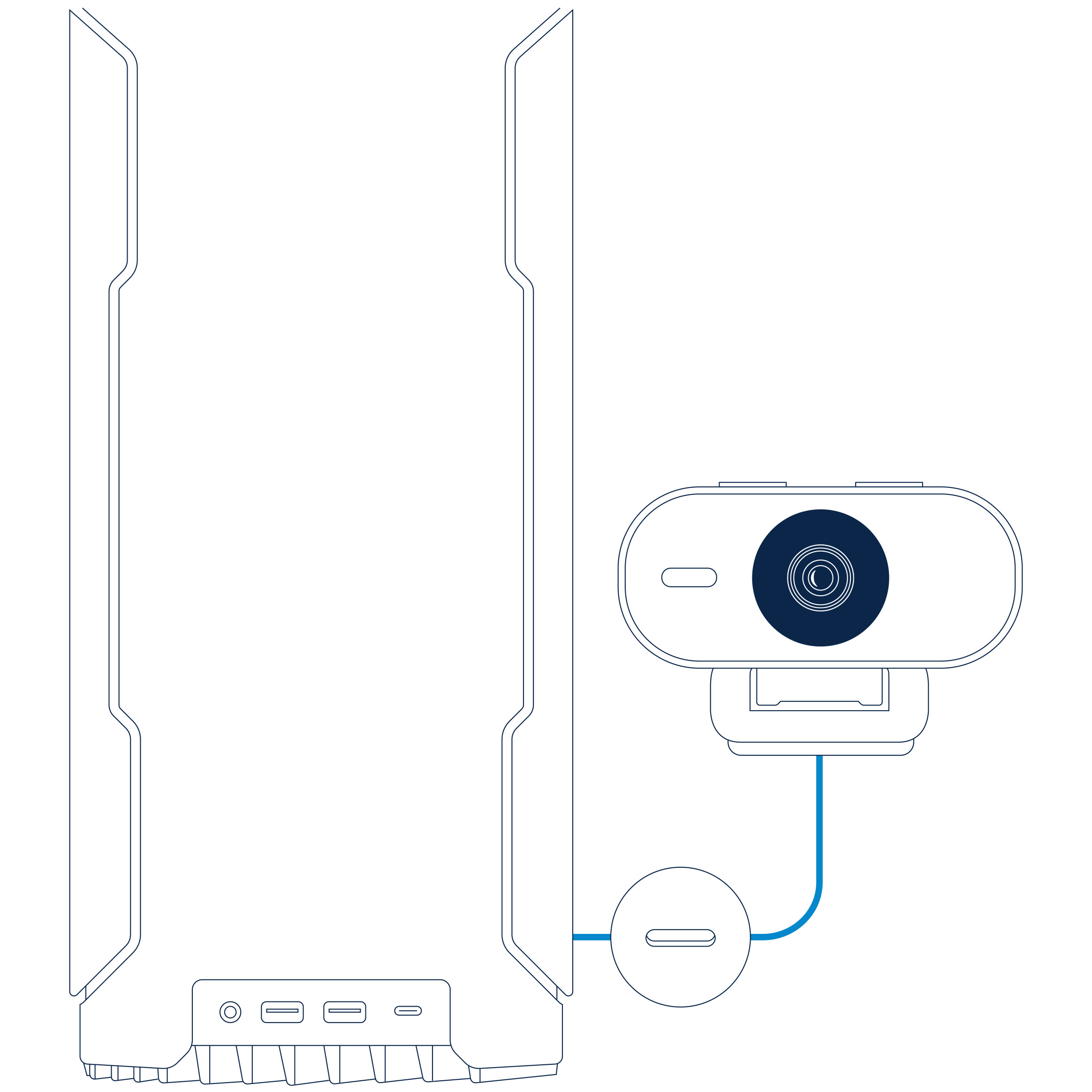

2. CONNECT
Simply connect Facecam Neo to a USB-C port on your computer and select your camera. You can also connect to a USB-A port using an adapter, not included. Do not use a USB hub.

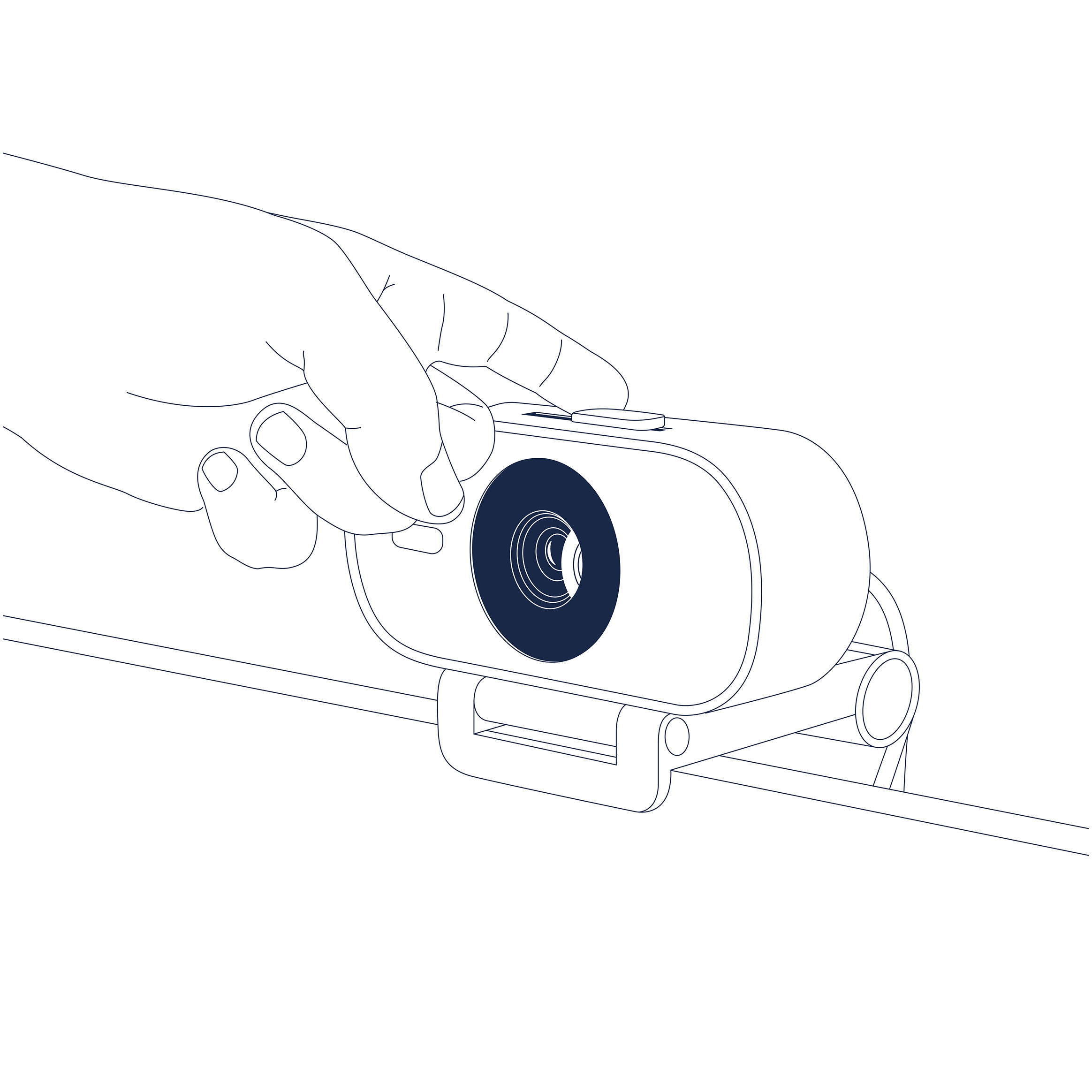

3. OPEN SHUTTER
Slide open the privacy shutter.
4. SMILE
Select Facecam Neo in your favorite streaming and video conferencing apps—Zoom, Skype, Teams, Slack, OBS, Google Meet, FaceTime, or any other application supporting the UVC standard.
DSLR-STYLE
2. ADJUST
Frame your shot, fine-tune your image, and enable HDR for impressive clarity in the harshest lighting conditions, like against bright office windows.
3. SMILE
Select Facecam Neo in your favorite streaming and video conferencing apps—Zoom, Skype, Teams, Slack, OBS, Google Meet, FaceTime, or any other application supporting the UVC standard.
Tech Specs
Specifications
SUPPORTED RESOLUTIONS (MJPG)
1080p60, 1080p30, 720p60, 720p30, 540p60, 540p30
OPTICS
Elgato AF Lens (auto focus)
FOCUS RANGE
30 cm – ∞
APERTURE
f/2.0
FOCAL LENGTH
26 mm (full-format equivalent)
FIELD OF VIEW
77°
SENSOR
CMOS sensor 1/2.9"
CONNECTION
USB Type C (fixed)
MOUNTING POINT
1/4" thread
USB VIDEO CLASS
UVC standard v1.5
DIMENSIONS (WDH)
88 x 32 x 40 mm | 3.5 x 1.3 x 1.6 in (without mount)
WEIGHT
80 g | 0.18 lb (without mount), 110 g | 0.24 lb (with mount)
In The Box
Specifications
Facecam Neo with USB-C 2.0 braided cable (139 cm | 55 in)
Monitor mount with 1/4" thread
Conscious Packaging
Our goal is to be 100% plastic-free. We're at 95% and counting. Since launching our first capture device in 2012, we’ve taken impressive strides not only in advancing our technology but also our packaging. Learn More
System Requirements
Specifications
Windows 10 (64-bit) or newer, Intel or AMD CPU
macOS 12 or newer, Intel or Apple CPU
iPadOS 17 or newer
USB 2.0 (or later) Type C, USB 2.0 (or later) Type A (with adapter, not included)
Got questions?
FAQ
The most common ones are here.
Can’t find what you’re looking for? Our support team is here to help.
Contact supportHow quickly can I get set up?
Do I need special software?
Is my system compatible?
Does it include a built-in microphone?
What is resolution and why is it important?
What is frame rate and why is it important?
Is HDR worth it?
Does it support Windows Hello?
Is my USB setup compatible?
Am I able to fine-tune my video further?
Is a warranty included with my purchase?
Where can I find help if I run into issues?
