XLR Dock for Stream Deck + — Quick Start Guide

⚠️ XLR Dock for Stream Deck+ is not a stand-alone device. It is a USB-C audio accessory that works exclusively with the Stream Deck + controller (not included).

You'll need to install both the Stream Deck app and Wave Link app, available for free download on PC or Mac

Installation

Stream Deck XL - Step a

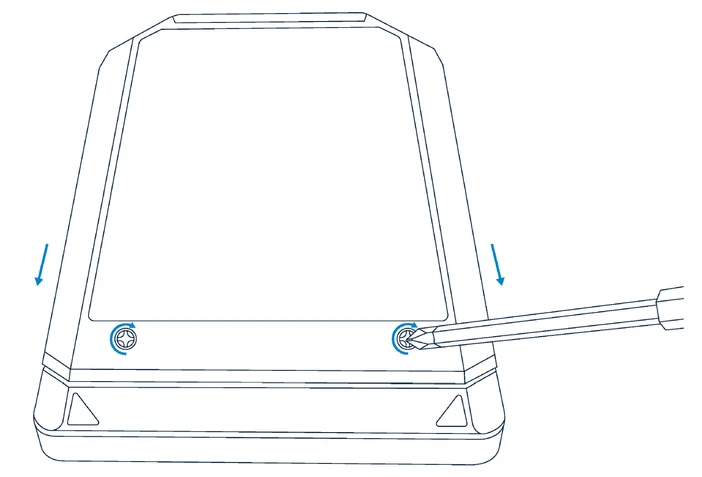

Use a Phillips screwdriver (not included) to loosen the two screws and remove the pedestal from Stream Deck +.

USB Hub for Stream Deck + - Step 1

Align the dock’s USB-C plug with the USB-C port on Stream Deck + and carefully insert.

XLR Dock for Stream Deck + - Step 3

Use the two screws to secure XLR Dock to Stream Deck +.

XLR Dock for Stream Deck + - Step 4

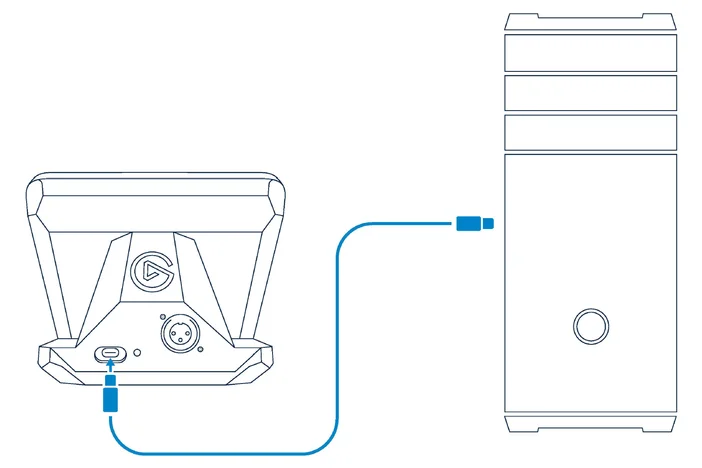

Connect the device directly to a USB port on your PC or Mac.

XLR Dock for Stream Deck + - Step 5

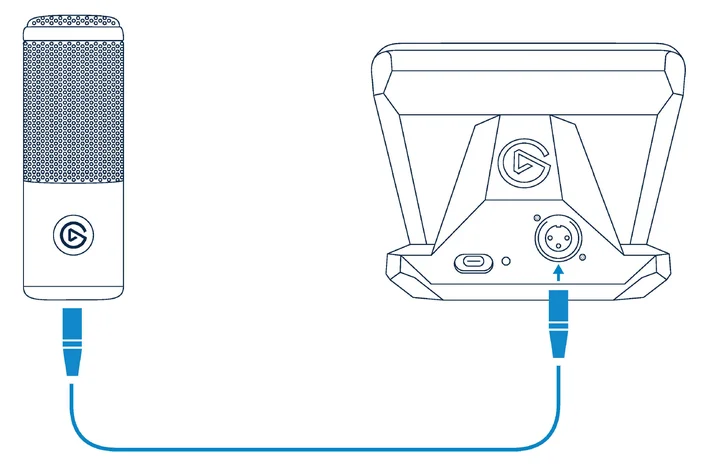

Connect your high-end microphone via a standard XLR cable.

XLR Dock for Stream Deck + - Step 6

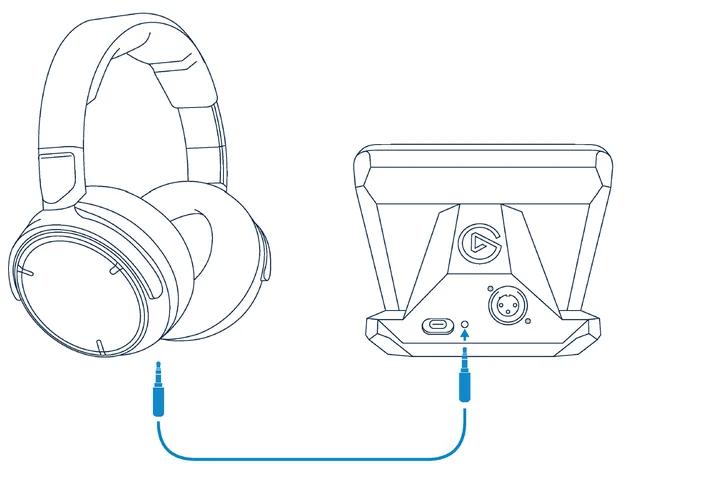

Connect your headphones to the 3.5-mm jack for zero-latency monitoring.

⚠️ Keep the volume at a moderate level to protect your ears

Software

XLR Dock for Stream Deck + - Step 8a
XLR Dock for Stream Deck + - Step 8b

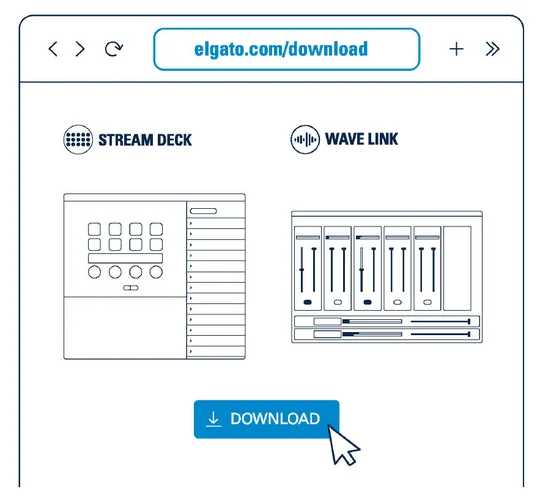

Get both Stream Deck software and Wave Link software, free on PC or Mac.

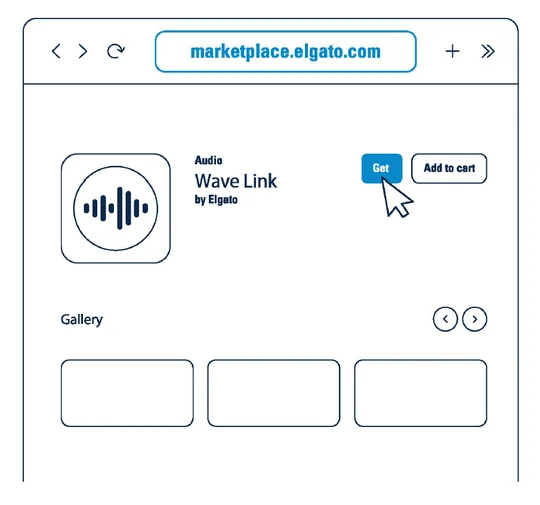

Get the free Wave Link plugin for Stream Deck on Elgato Marketplace.

Configuration

XLR Dock for Stream Deck + - Step 7

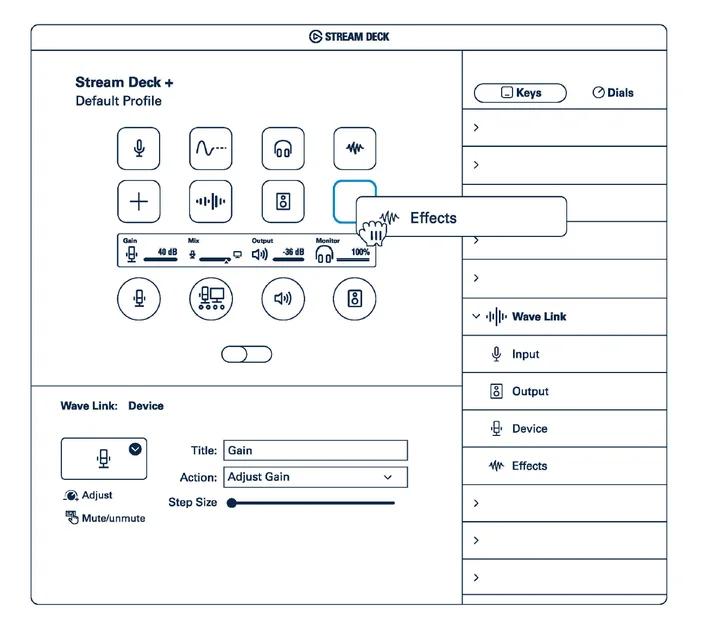

Drag and drop actions in the Stream Deck app to control your audio hardware and apps, including Wave Link.
