Elgato Solid Arm — Quick Start Guide

Overview

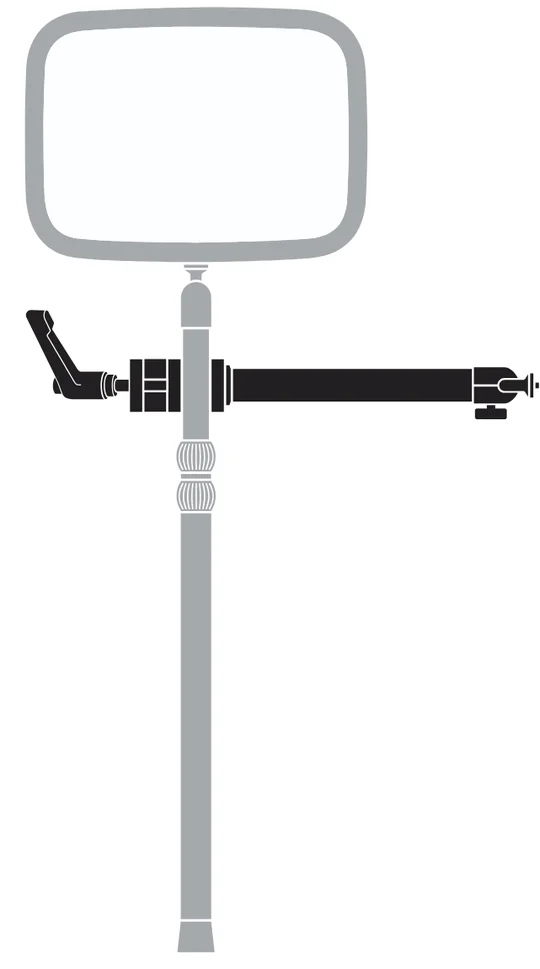

Solid Arm - 1
  • 26 cm / 10.24 in
  • Maximum load 2 kg / 4.5 lbs

Clamp

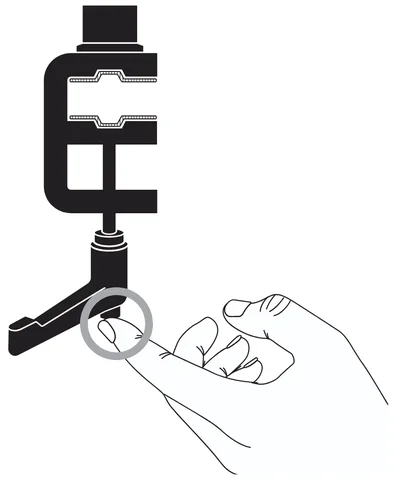

Solid Arm - 2

Push the button to reposition the ratchet after tightening.

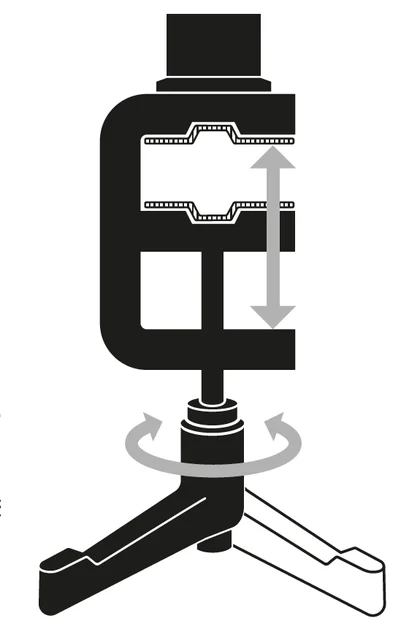

Solid Arm - 3

Padded and expandable up to 2.5 cm / 0.98 in

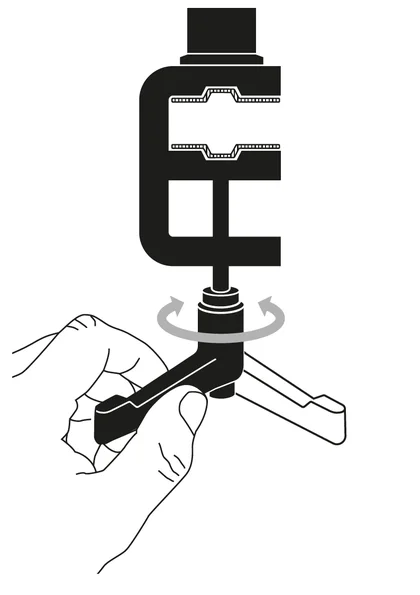

Solid Arm - 4

Loosen — rotate counterclockwise

Tighten — rotate clockwise

Note: Do not overtighten.

Warnings

  • Be especially cautious when setting up near children.
  • Do not leave the product exposed to direct sunlight.
  • Do not use the product mounted to an unstable surface. Drafts and breezes can cause movement that may result in damage to the product.
  • Keep the pole free from dirt and dust. If it becomes dirty, wipe it lightly with a soft cloth moistened with a little water and mild, neutral detergent. Damage may occur if volatile agents such as benzine or alcohol are used for cleaning.
  • Always mount the pole to a level, stable surface. Uneven or unstable surfaces may cause tipping and result in damage or personal injury.
  • Do not use the pole for applications other than those specified in this guide or the packaging.
