MANUAL | QUICK START GUIDE

Elgato Stream Deck Pedal — Quick Start Guide

Install Stream Deck

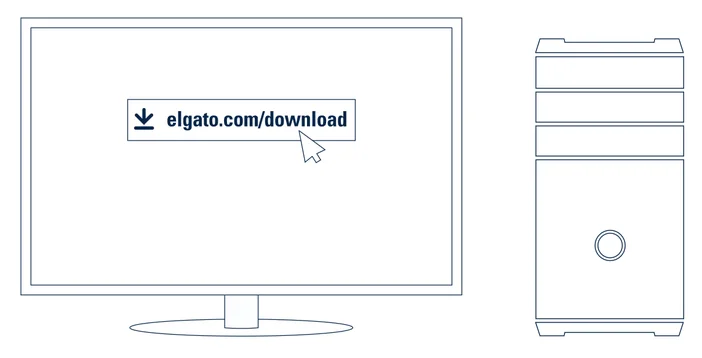

Download and install the Stream Deck app.

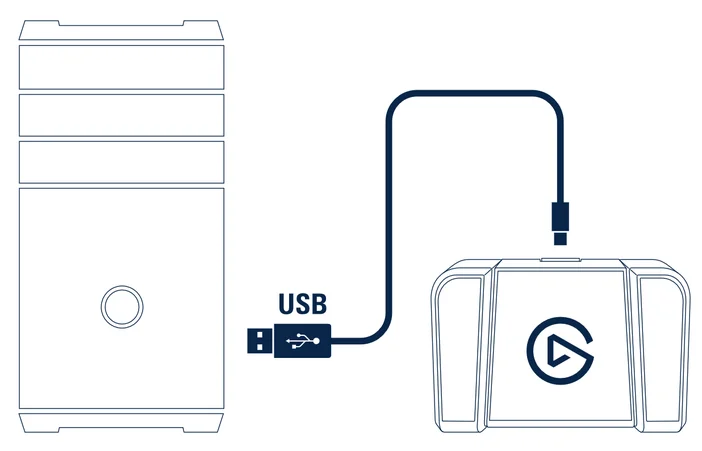

Connect Stream Deck Mini directly to a USB port on your PC or Mac.

Set Up Actions

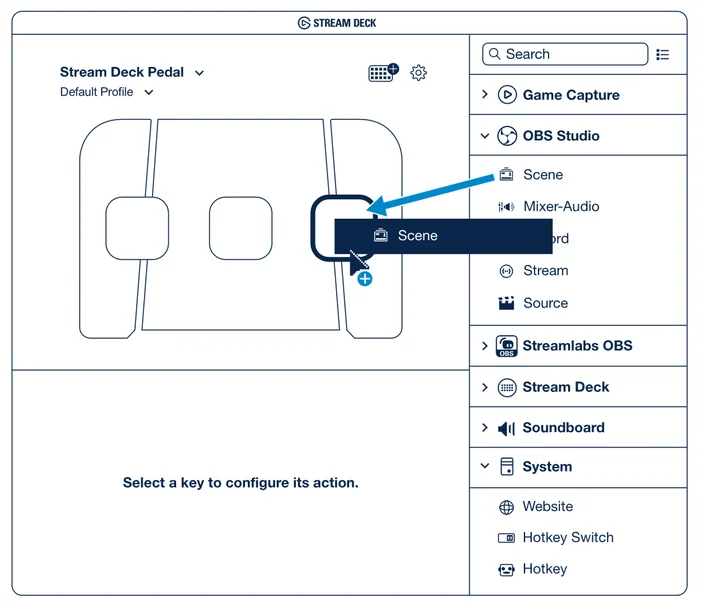

Launch the app to customize Stream Deck Pedal. Drag actions from the right panel and drop them onto your desired keys on the left.

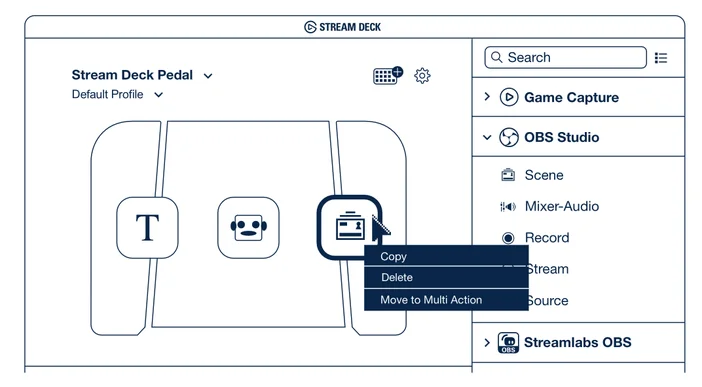

Right-click icons to copy, delete or move them.

Adjust Pedal Pressure

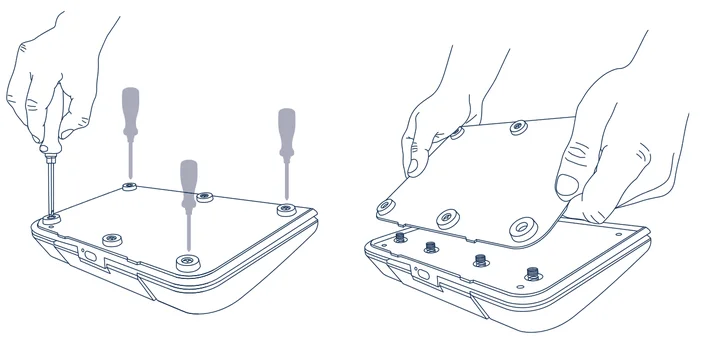

Loosen four corner screws with a Philips head (PH) screwdriver.

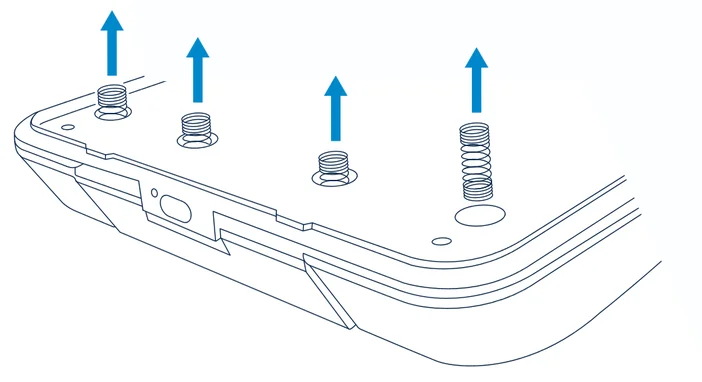

Adjust pedal preassure with the included spring tension sets.

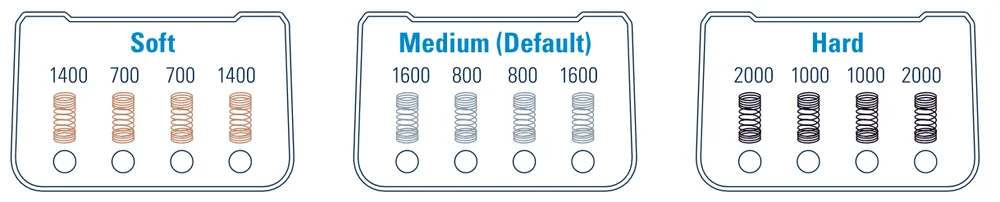

Coppet Set (Soft), Silver Set (Default), Black Set (Hard)

Use the Middle Pedal as a Footrest

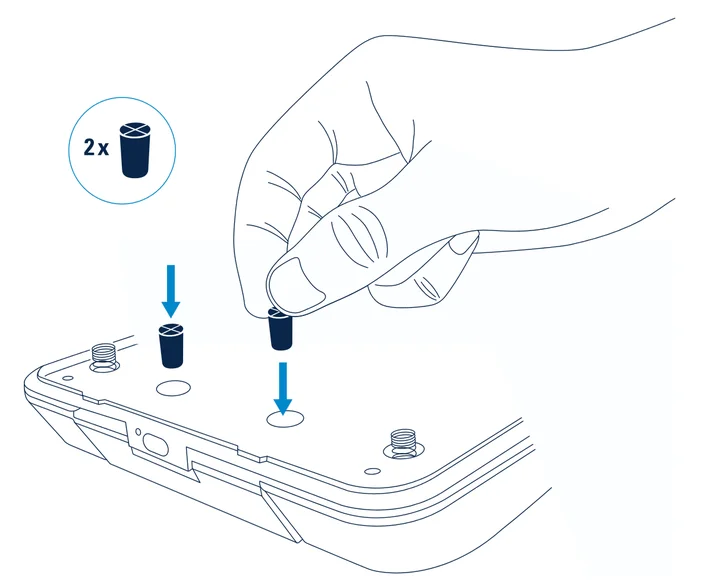

Lock the middle pedal with the included stoppers to convert it into a convenient footrest.
