MANUAL | QUICK START GUIDE
Elgato Video Capture — Quick Start Guide
What's in the box

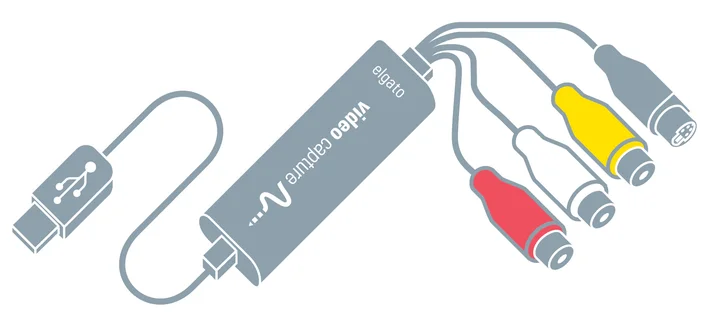

Elgato Video Capture Hardware

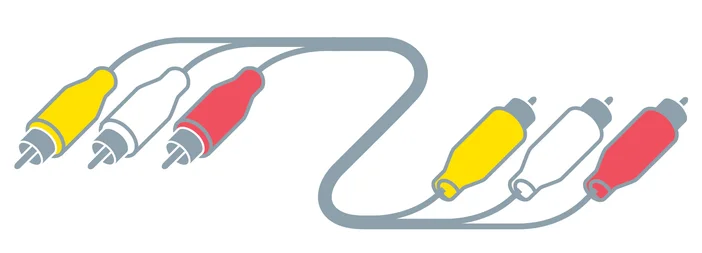

Composite video/RCA stereo cable
Elgato Video Capture software (CD-ROM). Proof of purchase key

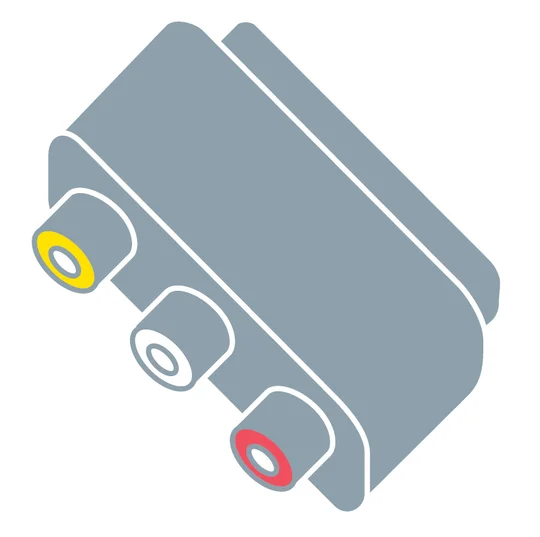

Composite-to-SCART adaptor
Quick Start Guide
- Connect Elgato Video Capture to your video source.
- Connect Elgato Video Capture to a free USB 2.0 port on your computer.
- Insert the software CD and install the Elgato Video Capture application.
- Launch the application and follow the instructions in the setup wizard.

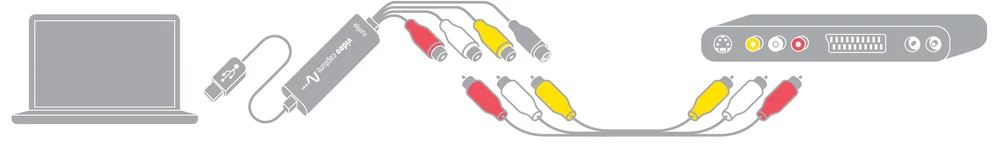

Composite-Video
Composite Video: Connect the yellow composite video input to the corresponing output of your video source. Also connect the RCA audio inputs with the audio outputs of the source.

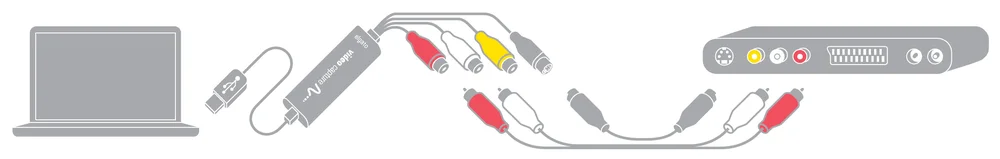

S-Video (S-VHS)
Connect the S-Video (S-VHS) input to the corresponding output of your video source. Also connect the RCA audio inputs with the audio outputs of the source.

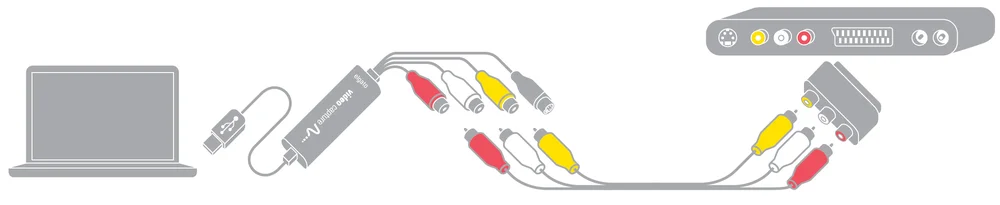

SCART
Connect the composite-to-SCART adaptor to the SCART output of your video source. Connect the composite video inputs to the composite-to-SCART adaptor.
